CUSTOM MULTIPLE STRIP TUBE & FURNACE HEATING ALLOY STRIP QUENCH FURNACES

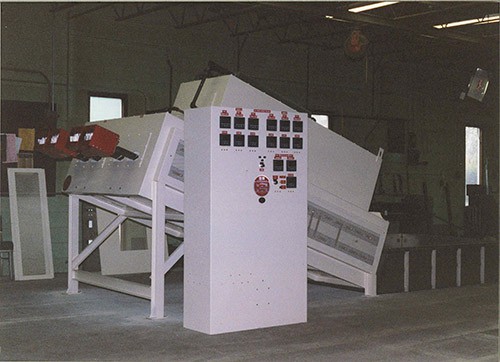

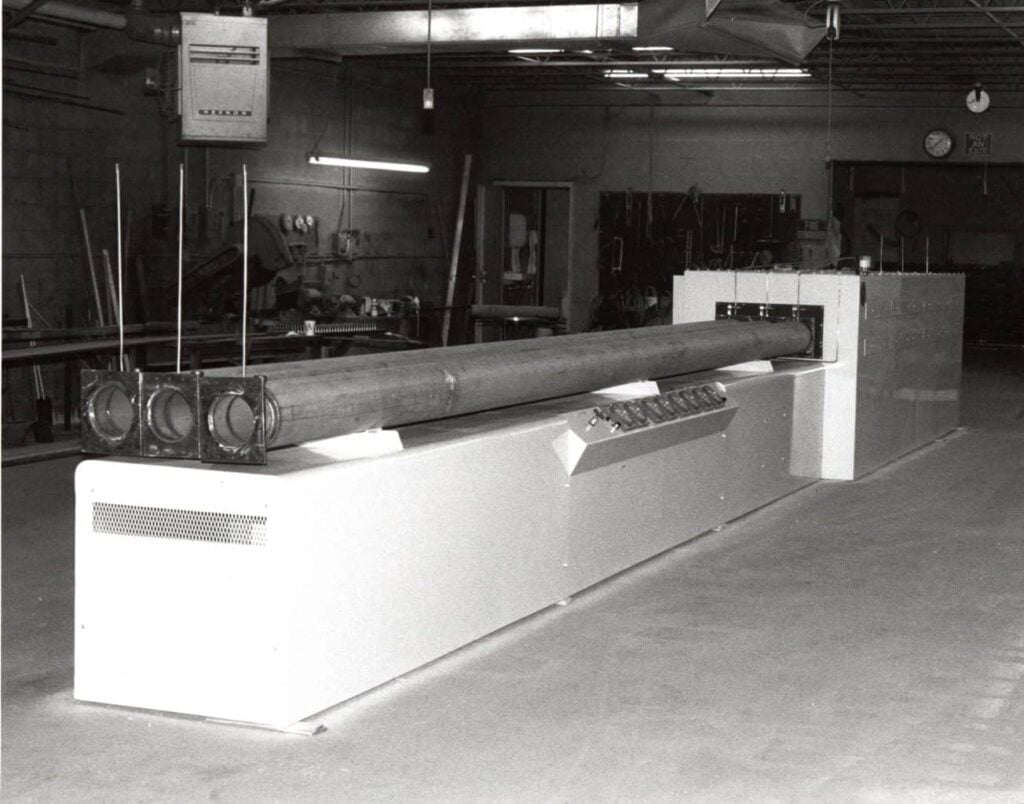

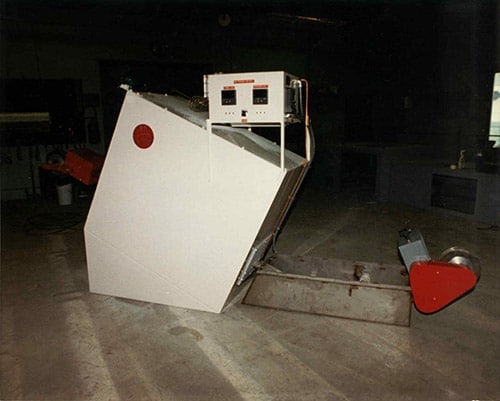

For over 50 years, S.M. Engineering has been providing customers in various industries with custom manufactured furnaces. We offer custom design and fabrication of multiple tube furnaces, for wire and furnace heating alloy strip quench annealing processes. These horizontal furnaces include round muffles and coolers, low watt density elements, and a manual nitrogen purge. Added available options include independently controlled multiple zones for increased capacity, high limit temp controls, SCR power control, PC interface, electric or gas firing heat source, and water cooling functionality.
Our furnaces accommodate all metals for treatment, in sizes down to .002” thick and maximum temperatures of 1800 °F. Industries including electronics, jewelry, chemical filtration, automotive, and coining among others have taken advantage of our furnaces to treat their product lines. S.M. Engineering specializes in the design and fabrication of the highest quality furnaces available at competitive rates. For more information about our custom multiple tube furnaces or the other custom work we provide please see the table below or Contact Us directly.
FURNACE CAPABILITIES
- Product Name
-
Multiple Tube Furnace
- Function
-
Wire Annealing
Strip Annealing
- Components
-
Round Muffles & Coolers
Low Watt Density Electric Heating Elements
Manual Nitrogen Purge
- Options
-
Custom Designs
Wire Annealing
Multi Zone
Safety Controls
High Limit Temperature Controls
Silicone Controlled Rectifiers (SCR)
Power Control
Computer Interface (PC Communications)
Automatic Nitrogen Purge
- Cooler Options
-
Stainless Steel
Low Nickel Stainless Steel
- Furnace Muffle Options
-
Alloy 330
Alloy 600
Alloy 601
- Muffle Shapes
-
Round
Elliptical
Diamond
D-Shaped
- Control System
-
Digital Temperature Controls
PLC
- Heat Source
-
Electricity
Gas Fired
- Cooling
-
Water
- Chambers
-
Hermetically Sealed
- Electrical Rating
-
All KW Ratings
All Voltages
- Heating Elements
-
Nichrome 80/20
Wire & Ribbon
Silicon Carbide Glow Bars
- Maximum Temperature
-
1800 °F
2100 °F
- Materials Heated
-
All Metals
- Thickness
-
Down to .002 in
- Lead Time
-
12 to 18 weeks
ADDITIONAL INFORMATION
- Product Name
-
Multiple Tube Furnace
- Industry Focus
-
- Electronics
- Jewerly
- Chemical Filtration
- Automotive
- Medical
- Aircraft
- Wire
- Coining
- Stamping
- Strip Metal Manufacturers
- Tubing Manufacturers
- File Formats
-
AutoCAD
