Custom Ammonia Dissociators

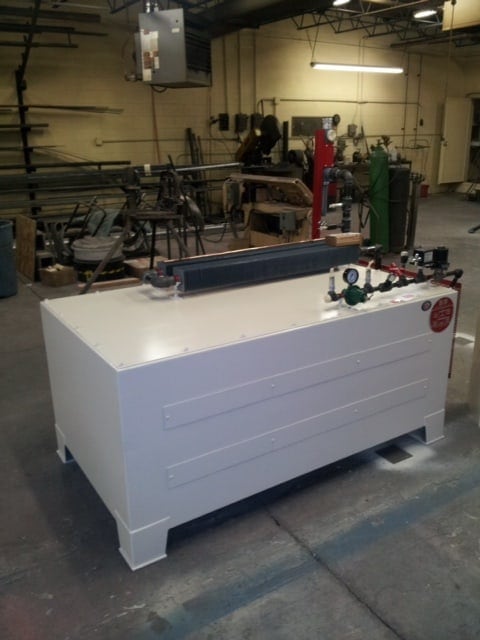

S.M. Engineering is a custom designed ammonia dissociator manufacturer, used in metal processing across a spectrum of industries including jewelry, electronics, automotive, and military to name a few. Our dissociators come equipped with a range of features, such as NFPA approved safety components, high flow limit control, multi-pass retorts, and gas cooling or gas heat exchanging. We offer multi-zone, as well as multi-retort design options. Units are available in sizes ranging from 100 – 6000 cubic foot per hour. Our machines are built with an operating temperature up to 1640 °F, which are electrically heated by nichrome ribbon elements. Equipment features our premium catalyst formulation to start the cracking process. Dissociators can be ordered to accommodate all KW ratings and all voltages.

Due to the importance of moisture content for correct metal processing, we guarantee the dew point of resulting dissociated gas to be minimum -80 °F, with typical dew points closer to -150 °F. Turnaround times for custom built dissociators are 12 – 18 weeks. S.M. Engineering has over 50 years in business, and our high quality operations have been developed to meet exacting customer needs while holding to industry standards. We also are happy to handle ammonia dissociator calibration in addition to our heat treat oven repair and industrial furnace service. For more information about our standard and custom ammonia dissociators or our other capabilities, please see the table below or Contact Us directly.

Ammonia Dissociator Capabilities

Product Name Ammonia Dissociator

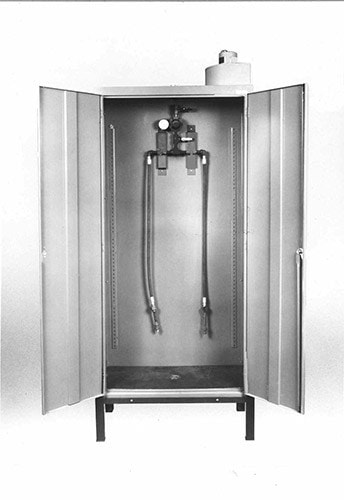

Components Ammonia Safety System, NFPA Approved Safety Components, Silicon Controlled Rectifiers (SCR), High Flow Limit Control, Low Watt Density Electric Heating Elements, Gas Cooling or Gas Heat Exchanging, Multi-Pass Retorts
Options Custom Designs
Multi Zone
Multi Retort
Retort Materials Alloy 330, Alloy 600, Alloy 601, Alloy 35/15
Control System Solid State, Ammonia Lockout
Heat Source Electric 80/20 Nichrome Ribbon Elements
Electrical Rating All KW Ratings, All Voltages
Size 100 to 6000 CF/H, Multi Retort Designs
Operating Temperature 1640 °F
Features Premium Catalyst Formulation
Dew point -80 °F (or better)
Lead Time 12 to 18 weeks

Additional Information

Product Name Ammonia Dissociator
Industry Focus
  • Electronics
  • Jewelry
  • Precious Metal Refining
  • Automotive
  • Surgical Instrumentation
  • Aircraft
  • Aerospace
  • Military
  • Wire
  • Munitions
  • Strip Metal Manufacturers
  • Stamping
  • Tubing Manufacturers
  • Medical Tubing
File Formats AutoCAD
